What is the Reelmaster Reel and Roll Handling Manipulator?
Reelmaster is a special manipulator solution developed for the ergonomic, safe and controlled handling, rotation and machine positioning of reels, rolls, bobbins and cylindrical loads.
Reel and roll type loads require special engineering evaluation not only because of their weight, but also because of their cylindrical shape, center of gravity, winding direction, inner diameter, outer diameter, surface sensitivity, line length and machine feeding position.
Reelmaster allows these loads to be lifted, guided, rotated, repositioned from horizontal to vertical or vertical to horizontal, and placed into the production line at the correct angle in a safer and more controlled way.
The system can be used in applications such as reel handling, roll handling, bobbin handling, film roll handling, textile roll handling, cable reel handling, paper roll handling, foil roll handling and packaging roll handling.
Which Problems Does Reelmaster Solve?
Manual handling of reels, rolls and bobbins, or moving them with unsuitable equipment, may cause operator fatigue, workplace safety risks, uncontrolled rolling, surface damage, incorrect positioning, incorrect machine feeding, dependency on two operators, cycle time losses and reduced production efficiency.
Especially in heavy reel applications, balanced load control, correct gripping point selection, safe entry into the inner diameter and accurate alignment of the roll axis with the machine feeding direction are critical.
Reelmaster reduces these problems with a special reel and roll gripping system, pneumatic manipulator support, servo-controlled movement options and vision camera assisted alignment.
Instead of carrying the load directly by hand, the operator guides the load with manipulator assistance. This allows the reel or roll to be handled more safely, ergonomically and precisely.
Why Use Reelmaster?
Reelmaster enables cylindrical loads to be moved safely, ergonomically and accurately within the production line.
The Reelmaster system offers:
• controlled handling of reels, rolls, bobbins and cylindrical loads
• ergonomic operator support
• safe load control for heavy reel applications
• easier and more controlled entry into the reel inner diameter
• horizontal-to-vertical and vertical-to-horizontal repositioning
• controlled rotation and guidance
• servo-controlled precise movement option
• vision camera assisted alignment option
• controlled handling solution for long production lines
• machine feeding support on the correct axis
• reduced surface damage risk
• reduced operator fatigue
• safer load control in production areas
• special reel and roll gripping design
• process-specific customizable end effector structure
Which Industries Use Reelmaster?
Reelmaster can be used in many industrial areas where reels, rolls, bobbins and cylindrical loads are handled.
Main application areas include:
• packaging industry
• textile production
• technical textile applications
• plastic film production
• paper and label production
• printing lines
• cable and wire production
• rubber production
• foil and film roll production
• roll material feeding lines
• reel feeding lines
• general industrial production lines
The system can be customized according to reel diameter, roll width, inner diameter, outer diameter, load weight, winding direction, surface sensitivity, machine feeding direction, rotation angle, line length and working area.
Recommended Applications
Reel handling and positioning
Suitable for safe handling of reels between the production line, storage area, machine feeding point or workstations.
Roll and bobbin handling
Supports ergonomic handling of film, fabric, paper, cable, foil, label, packaging and technical textile rolls.
Heavy reel handling applications
Depending on project requirements, Reelmaster can be engineered for handling, guiding and machine positioning of heavy reels up to 1 ton.

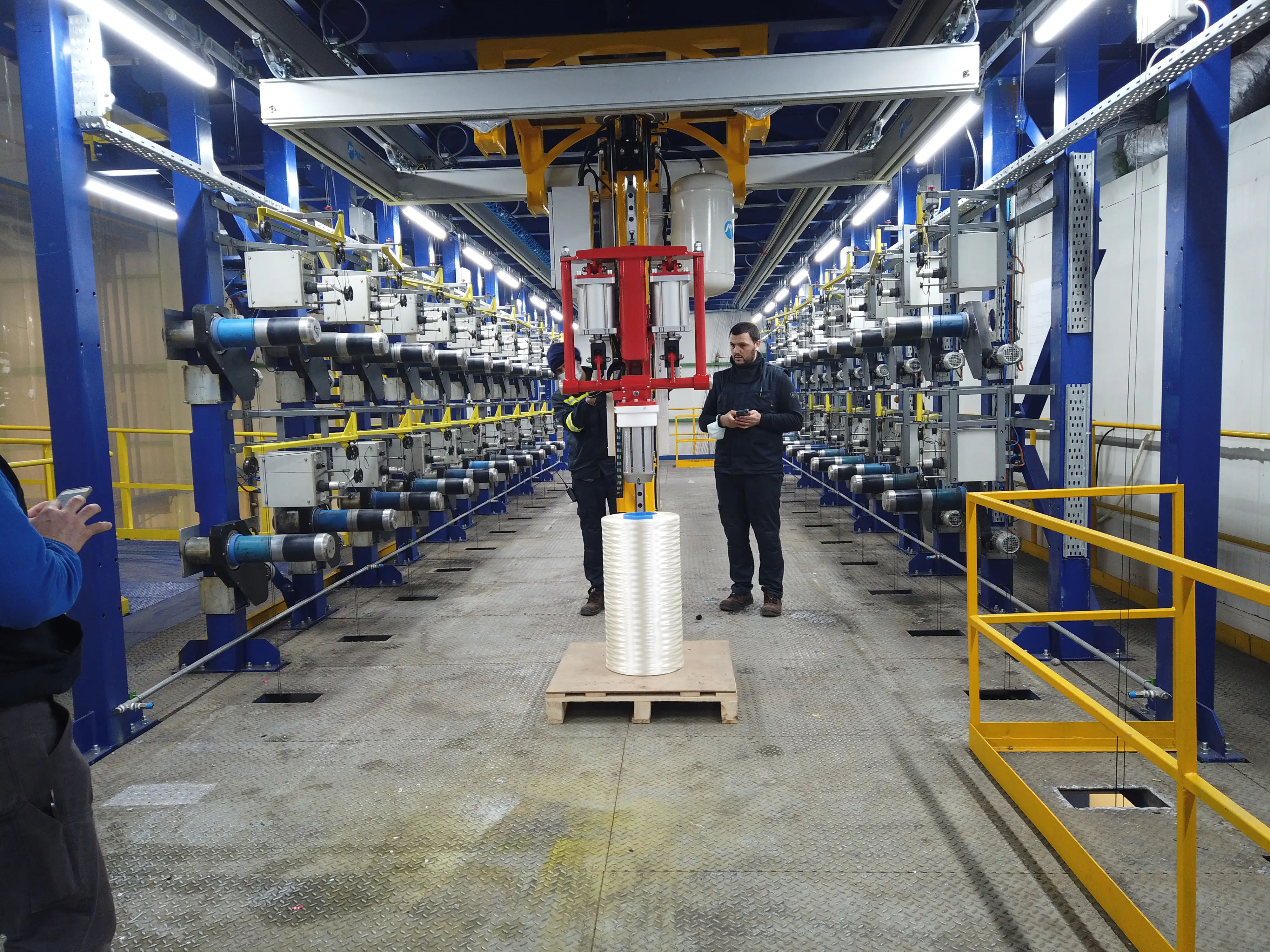

Long line reel handling
Reelmaster can be evaluated for operation on lines up to 100 meters depending on project requirements.
Servo-controlled precise positioning
In heavy or large diameter reel applications, servo-controlled movement can provide more precise travel, controlled stopping and more accurate alignment with the machine entry point.
Vision camera assisted reel alignment

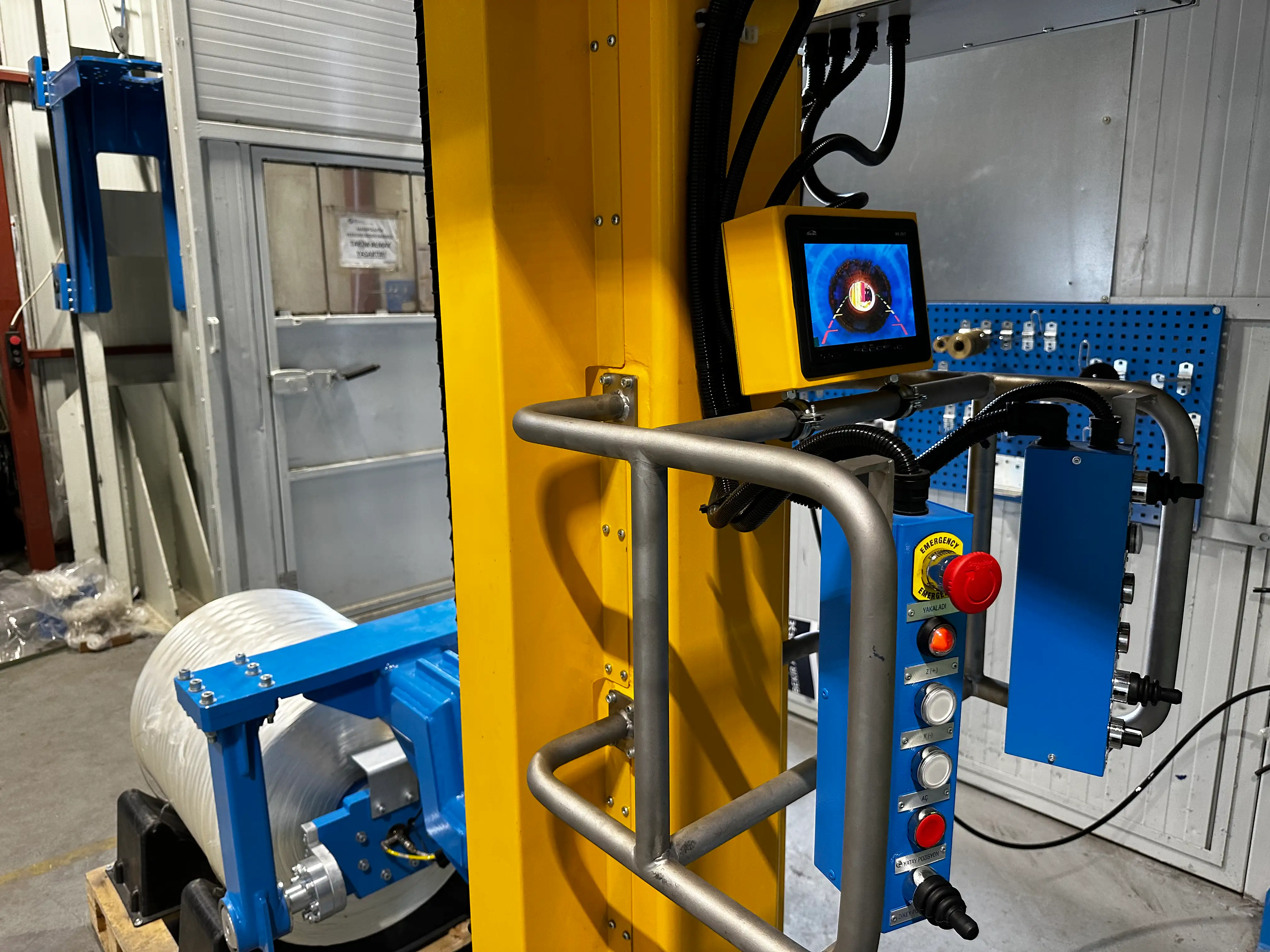

A vision camera assisted alignment system can be evaluated to allow easier and more accurate entry into the reel center.
This feature helps the operator see the reel inner diameter more clearly and guide the gripping tool more precisely into the reel center, especially in large diameter, heavy or limited-visibility applications.

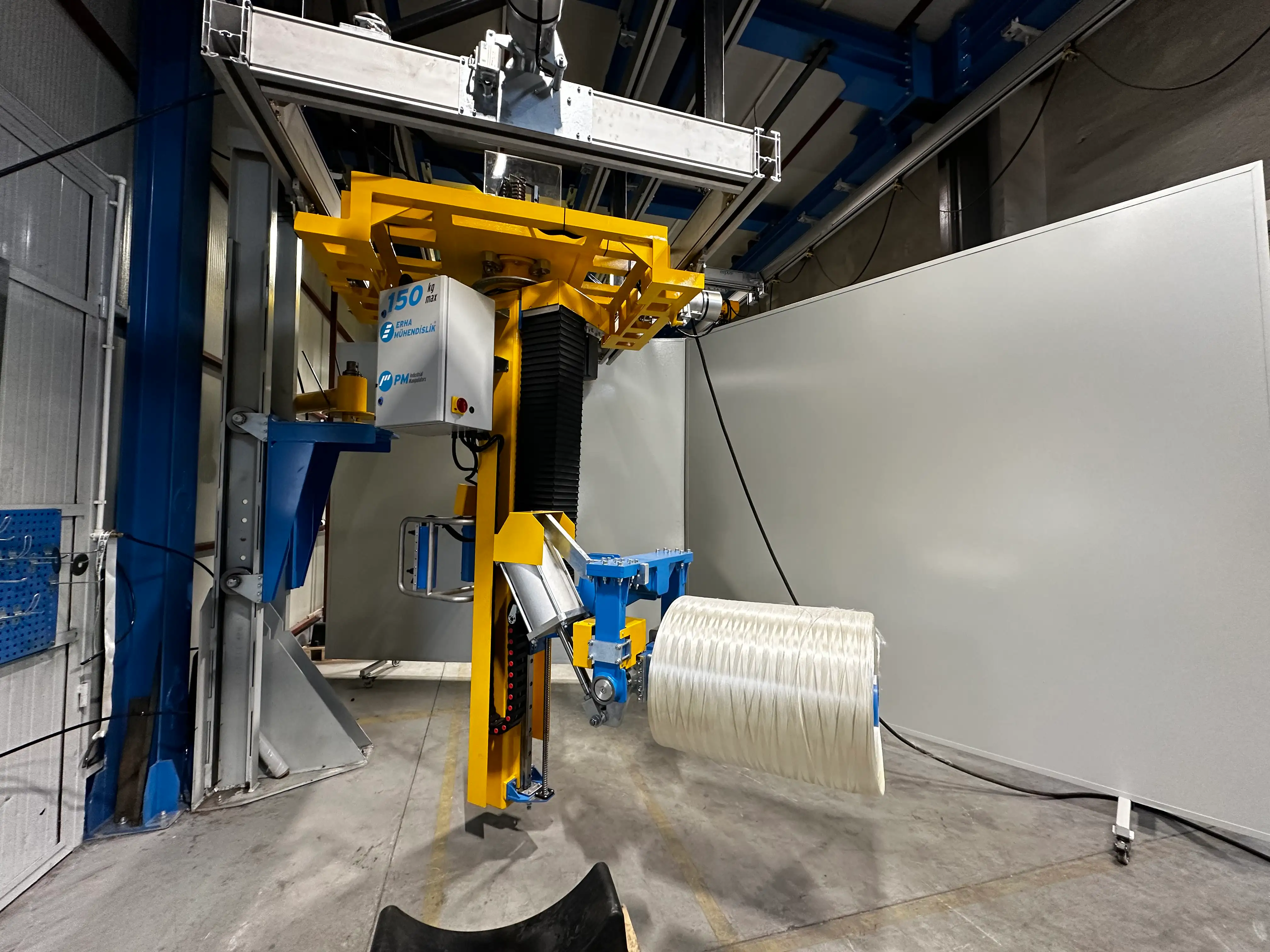

Horizontal-to-vertical repositioning
Can be used when reels or rolls must be rotated from horizontal to vertical position or from vertical to horizontal position in a controlled way.
Machine feeding applications
Allows reels, rolls or bobbins to be positioned into production machines on the correct axis and at the correct position.
Technical Features and Configuration
Reelmaster is configured project specifically for safe gripping, handling, rotation and correct positioning of reels, rolls, bobbins and cylindrical loads into the production line.
System design is based not only on load weight, but also on reel diameter, roll width, inner diameter, outer diameter, winding direction, center of gravity, surface sensitivity, gripping method, rotation angle, machine feeding direction, line length and operator working area.
In addition to standard reel and roll handling applications, Reelmaster can be specially designed for long lines and heavy reel handling projects.
Servo-controlled movement can be used in heavy reel applications. The servo-controlled structure allows more precise reel travel, controlled stopping, more accurate alignment with the machine entry point and safer operator guidance of the reel.
A vision camera assisted alignment system can be evaluated to enter the reel center more easily and accurately.
Technical features that can be evaluated for Reelmaster applications include:
• special handling solution for reels, rolls, bobbins and cylindrical loads
• project-specific heavy reel applications up to 1 ton
• operation on long production lines up to 100 meters
• servo-controlled forward and backward movement and precise positioning
• vision camera assisted reel center alignment
• easier and more controlled entry into the reel inner diameter
• internal gripping or external gripping option
• mechanical, pneumatic, servo-controlled or process-specific gripper design
• horizontal-to-vertical and vertical-to-horizontal repositioning
• controlled rotation and guidance capability
• machine feeding support on the correct axis
• balancing analysis according to the load center of gravity
• special gripper design according to different reel diameters and roll widths
• controlled gripping structure for surface-sensitive rolls
• pneumatic manipulator support to improve operator ergonomics
• production line, machine entry or workstation specific integration
• manual, pneumatic, servo-controlled or controlled rotation mechanism depending on the application
• integration of sensors, safety valves, camera and control equipment according to safety and process requirements
Depending on the application, the system can be designed with internal mandrel gripping, external jaw gripping, center gripping, surface supported handling, pneumatic clamping, mechanical locking, servo-controlled movement, controlled rotation, vision camera assisted alignment and process-specific end effector solutions.
Detailed technical values should be determined according to the weight, diameter, width, inner diameter, outer diameter, material type, surface sensitivity, rotation angle, working radius, line length, vertical movement requirement, servo control requirement, camera alignment requirement and mounting structure of the reel or roll to be handled.
Technical capacity and mounting alternatives should also be shown in the existing Technical Specifications and Mounting Options sections on the product page.
Safety, CE Compliance and ATEX Evaluation
Safety evaluation in Reelmaster applications is based on load weight, reel diameter, inner diameter, outer diameter, center of gravity, gripping safety, rotation angle, line length, servo motion control, operator position, machine feeding point and working environment.
CE compliance, risk assessment, safe load handling principles and operator safety are key parts of the PM engineering process.
In textile dust, solvent, painting, chemical, plastic film production or special production areas where there may be an explosive atmosphere risk, ATEX requirements are evaluated on a project specific basis.
Product Liability Insurance
PM products are supported by product liability insurance coverage including 2 million Euro property damage coverage and 1 million Euro personal injury coverage.
This assurance strengthens PM’s manufacturer identity in reel, roll, bobbin and cylindrical load handling applications by supporting safe load control, engineering responsibility, operator safety and customer confidence.
What Makes PM Different?
PM evaluates Reelmaster applications not only according to load capacity.
Reel diameter, roll width, inner diameter, outer diameter, winding direction, surface sensitivity, machine feeding position, rotation requirement, line length, servo control requirement, camera alignment requirement, center of gravity and operator ergonomics are analyzed together.
PM provides strong engineering capability in:
• reel and roll handling manipulator engineering
• special reel, roll, bobbin and cylindrical load gripper design
• internal and external gripping solutions
• project-specific engineering for heavy reel applications up to 1 ton
• long line operation solutions up to 100 meters
• servo-controlled movement and precise positioning
• vision camera assisted reel center alignment
• controlled rotation and guidance systems
• horizontal-to-vertical and vertical-to-horizontal repositioning solutions
• center of gravity and load safety analysis
• CE compliance and risk assessment
• project-specific evaluation for ATEX required applications
• safety focused approach supported by product liability insurance
• production line specific integration
With this approach, Reelmaster provides a strong PM solution for safe, ergonomic and process-oriented handling of reels, rolls, bobbins and cylindrical loads.
